In modern manufacturing,when faced with the production of parts with high hardness and high precision requirements,a single machining method often fails to meet all technical requirements.At such times,the rational combination of various precision machining processes becomes crucial.We will explore how to provide an efficient and reliable solution for the manufacturing of hard material precision parts through the effective integration of CNC machining technology and wire cutting processes.

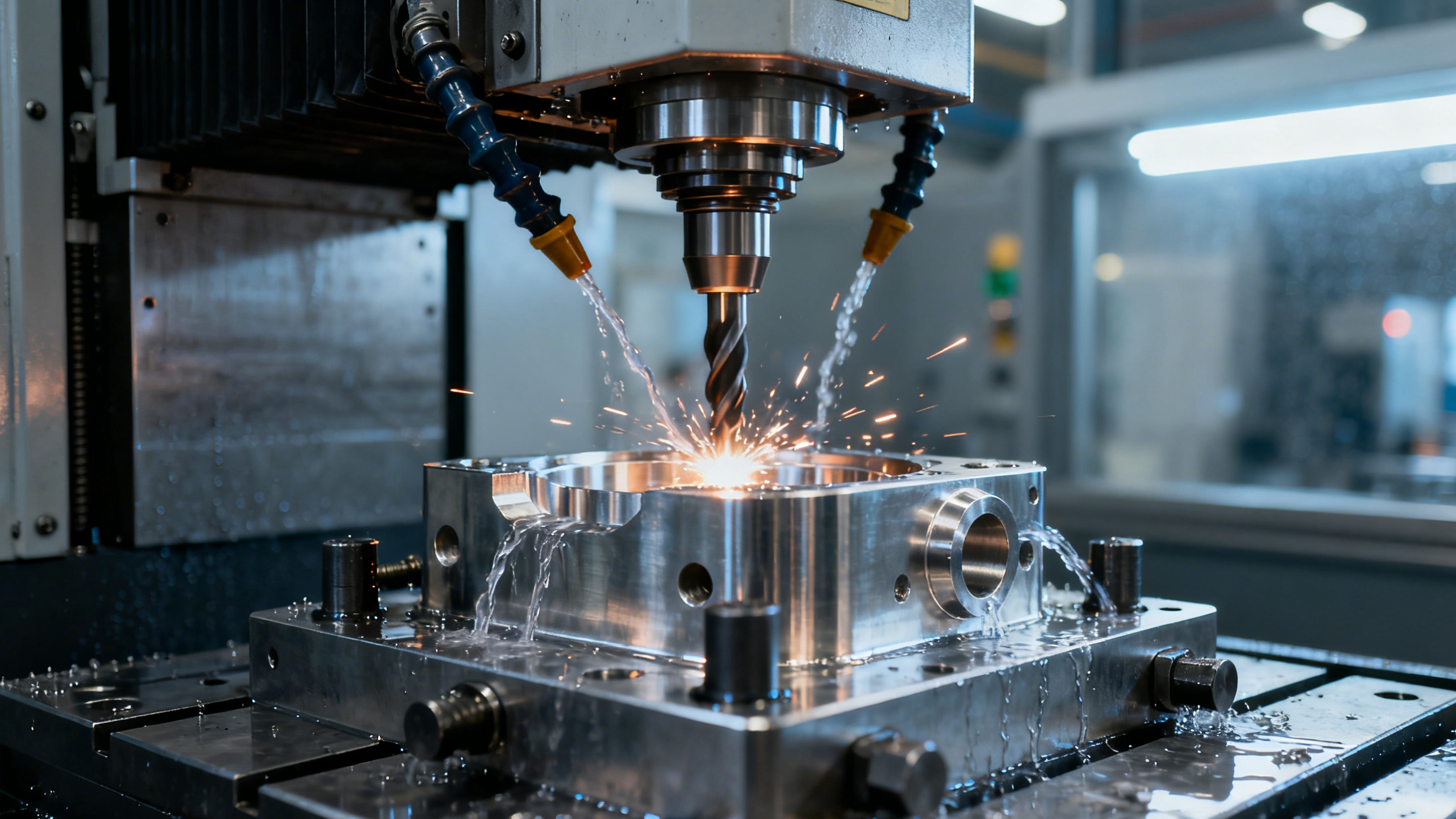

For most precision metal parts,CNC machining is the preferred method for achieving complex geometric shapes.CNC milling is adept at creating three-dimensional contours,cavities,and bosses,while CNC turning is better suited for handling the outer diameters,inner holes,and threads of rotationally symmetrical components.These two basic processes form the core capabilities of modern precision machining,capable of meeting the machining needs of common materials ranging from aluminum alloy to stainless steel.
However,when encountering ultra-hard materials such as tool steel after heat treatment,tungsten carbide,or special alloys,traditional cutting tools face significant limitations.At this point,relying solely on CNC machining is not only inefficient but can also lead to excessive tool wear and even workpiece damage.This is the perfect time to introduce the Wire Electrical Discharge Machining(Wire EDM)technology.
In actual production,we often see the following process flow:First,CNC machining is used to complete most of the geometric features of the part,including the installation positioning surfaces and datum edges.The advantage of this stage is the rapid removal of excess material and the establishment of an accurate datum system.Subsequently,the part is subjected to necessary heat treatment to achieve the required surface hardness—this usually makes traditional cutting impossible to continue.Finally,wire cutting technology is used to complete the processing of fine features,such as narrow slots,sharp corners,or internal contours,which are precisely the strong points of the wire cutting process.
Particularly noteworthy is the art of integrating the two technologies.Experienced manufacturing teams will reserve appropriate allowances and process datums for subsequent wire cutting operations during the CNC machining stage.For example,during CNC milling,there is a conscious effort to prepare guide holes and positioning surfaces for wire cutting;during CNC turning,specific process platforms are retained to meet the clamping requirements of subsequent wire cutting.This forward-looking process planning ensures a smooth transition between different machining methods,ensuring accuracy while improving overall efficiency.
A typical application example is the mold manufacturing industry.The mold base is quickly shaped through CNC machining,including features such as cooling channels and ejector pin holes.After heat treatment to achieve a hardness of over 50HRC,wire cutting is used to refine the cavity contours and fine gaps.Compared to a single machining method,this combined solution can ensure mold life while achieving complex geometric accuracy.
Successful precision part manufacturing is not just about piling up equipment,but also about integrating process knowledge.Professional factories will scientifically configure the application points of CNC cutting and wire cutting based on material properties,tolerance requirements,and cost factors.Understanding the strengths and limitations of each technology is essential to optimize the production process while ensuring quality.
Whether it is a simple positioning piece or a complex functional component,a rational combination of processes is always the key to successful precision manufacturing.By fully leveraging the efficiency advantages of CNC machining and the hard material processing capabilities of wire cutting technology,manufacturers can provide truly valuable engineering solutions to customers.This is especially important in today's industrial environment,which pursues high performance and long life.
