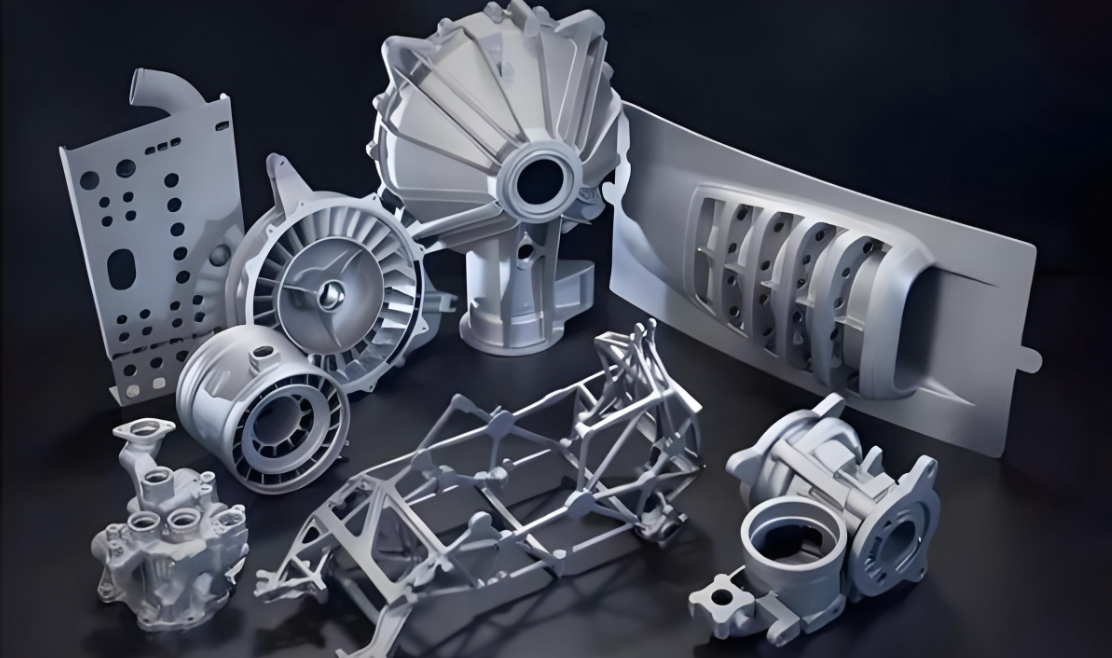

In today’s high end manufacturing landscape, the growing demand for large, complex-surface components confronts traditional processes with a twin dilemma: insufficient accuracy and low productivity. Parts such as massive impellers, heavy-duty molds and key aerospace structures combine intricate contours with difficult-to-cut materials, pushing machine tools to their absolute limits. Against this backdrop, 5-axis simultaneous CNC gantry machining centers have emerged as the core equipment for solving these challenges. Veteran engineering managers and procurement decision-makers especially in the industrially mature North American market are now focusing on this technology to explore its true capabilities and future potential.
Q: Why is 5-axis simultaneous control so critical for a gantry platform?
A: Fundamentally, it breaks the linear-motion barrier of conventional 3 axis machines. By adding two rotary axes to the familiar X, Y and Z linear axes, the spindle head or the work table can tilt to virtually any spatial angle. When all five axes move in perfect synchronization under CNC command,so called 5 axis simultaneous control the tool-tip orientation is adjusted in real time, enabling continuous, smooth milling of extremely complex sculpted surfaces.
Q: Which concrete machining bottlenecks does it eliminate?
A: Take an integrally bladed rotor (blisk): its blades are highly twisted, thin-walled and separated by narrow flow channels. On a 3-axis machine the fixed tool angle forces the use of long, slender tools that vibrate, yielding poor surface finish, out of tolerance dimensions and even tool breakage. A 5 axis gantry can dynamically orient the tool to maintain an optimal cutting engagement zone while using short, rigid cutters boosting metal-removal rates, holding profile accuracy and improving surface quality. Likewise, for aerospace structural parts such as fuselage frames and wing ribs, 5 axis capability allows multi-sided and deep cavity machining in a single setup, slashing repetitive locating errors and eliminating secondary clamping time vital for the takt time driven commercial aircraft supply chain.
Q: What is the real world significance of the precision achieved by a 5 axis gantry CNC?
A: This precision is more than micron-level tolerances on a drawing; it is dynamic stability. With only one setup, the part datum is established once and preserved, driving cumulative error toward zero. Modern 5 axis CNCs also integrate advanced RTCP (Rotation Tool-Center-Point) functions that automatically compensate for tool tip displacement caused by rotary-axis motion. Programmers can therefore machine directly to the part geometry without calculating complex kinematic transformations, greatly simplifying NC program creation and verification and guaranteeing accuracy from the software side.
Ultimately, investing in an advanced 5-axis simultaneous gantry CNC is not simply purchasing a metal-cutting machine—it is adopting a systematic solution for tomorrow’s manufacturing challenges. It fuses the enormous travel and rock-solid stability of a gantry structure with the unmatched flexibility of 5-axis motion, giving manufacturers the technical confidence and competitive edge required to win large, complex, high-value work. We invite you to explore our deep expertise and proven applications in this field; for further details please visit our official website www.simituo.com.
