In aerospace, energy and high-end equipment manufacturing, machining large parts with complex curved surfaces has long been a persistent headache for manufacturers. Whether it’s an aero-engine impeller, a deep-cavity automotive die or a monolithic aerospace skin panel, every component demands extreme dimensional accuracy, uniform surface quality and rock-solid structural stability. Traditional 3-axis CNC machines struggle to meet these exacting standards because repeated setups stack up errors and fixed tool angles throttle efficiency. 5-axis simultaneous gantry CNC technology now delivers the breakthrough answer, establishing itself as the core tool for tackling large, complex-surface parts.
Perfect Fusion: From “Impossible” to “High-Performance”

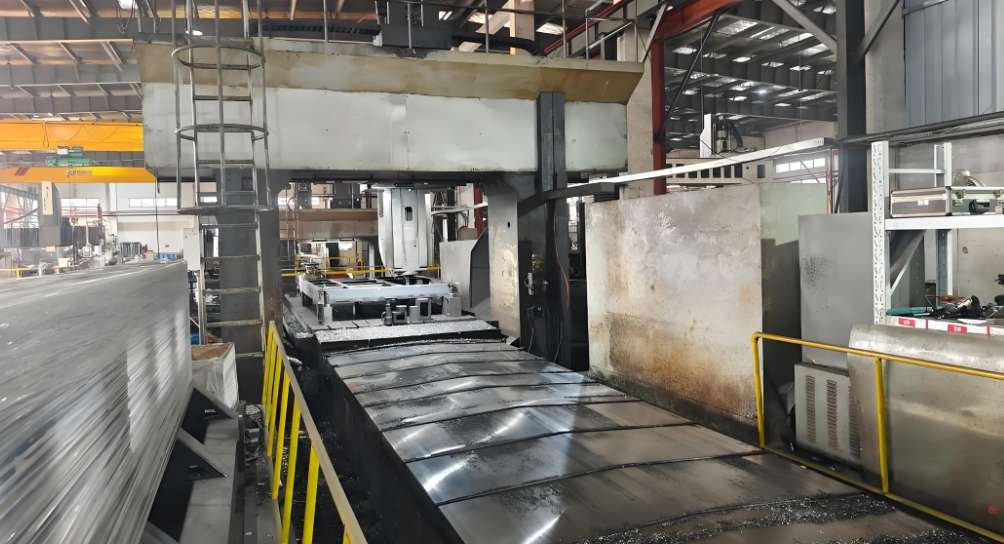

The essence of 5-axis simultaneous control is the ability to machine from any direction without reclamping the part—achieved through table rotation and tool swivelling. Marrying this capability to a gantry’s expansive table and ultra-rigid frame creates a “large-size + high-flexibility” platform that rewrites the rules of large-part machining.
Take a large centrifugal impeller for the energy sector. The blade profiles dictate hydrodynamic performance, so each blade must hold micron-level form accuracy. On a 3-axis machine, multiple re-fixtures drag the cycle to 3–5 days and risk blade-to-blade inconsistency, degrading overall efficiency. A 5-axis simultaneous gantry CNC completes every blade in a single setup: the tool follows the blade’s tangent vector at the optimum cutting angle throughout, cutting tool wear by more than half and doubling tool life while ensuring identical geometry for every blade. Cycle time drops 40 % and surface roughness falls below Ra 0.8 µm—fully satisfying top-tier impeller requirements.
Complex Cavities & Structural Parts: “Precision on Demand”
In die-making, deep cavities and undercuts in automotive panel dies or aerospace composite moulds are notorious pain points for conventional machines. 3-axis machining typically demands long, slender tools or frequent tool changes, sacrificing rigidity, inviting vibration and undermining dimensional accuracy. A 5-axis gantry’s tool can tilt and rotate freely in 3-D space, reaching deep inside a cavity with a standard-length cutter. One aerospace mould featuring a 500 mm-deep cavity required 72 hours on a 3-axis machine; the 5-axis gantry finished it in 24 hours, holding cavity tolerance within 0.02 mm and meeting high-gloss surface specifications.
The advantage is even more pronounced on massive aerospace structural parts—titanium frames or aluminium skins. These parts are often enormous (e.g., 2 m × 1 m skins) and made from tough alloys (titanium up to 35 HRC), demanding extreme stability. The gantry’s rigid frame supports the part’s weight without distortion, while 5-axis motion maintains continuous tool contact along contoured surfaces—no need for segmented machining and welding. One aluminium skin formerly required three separate pieces and subsequent welding; the 5-axis gantryskins it in a single operation, preserving curvature continuity and holding dimensional accuracy within 0.03 mm—well within aerospace tolerances.
Dual Engine of “Efficiency & Precision” for High-End Manufacturing
By uniting large-part capacity with high-precision, flexible machining, 5-axis simultaneous gantry CNC technology solves the once-intractable “large size + complex surface” challenge. For UK and European high-end manufacturers this translates into:
• Shorter lead times: multi-face machining in one setup slashes handling and process steps.
• Higher accuracy: elimination of repeated clamping prevents error accumulation and guarantees part consistency.
• Broader adaptability: the ability to machine virtually any complex geometry meets diverse industry requirements.
In high-end manufacturing, the choice of machining platform directly determines product quality and market competitiveness. 5-axis simultaneous gantry CNC has become the mainstream solution for complex-surface parts and is already trusted by leading aerospace, energy and die-mould companies. To explore application cases and discover how this technology can deliver high-efficiency, high-precision solutions for your next project, visit www.simituo.com.
