Nickel plating is a widely used surface treatment technology that involves depositing a layer of nickel onto the surface of a substrate. This process not only enhances the appearance of the workpiece but also improves its various performance properties, making it highly valuable in many industries, especially in the field of CNC machined parts.
The nickel plating process typically consists of several key steps, each of which is crucial to ensuring the quality of the nickel coating.
First, surface preparation is essential. The CNC machined parts often have oil, rust, burrs, or other contaminants on their surfaces, which can affect the adhesion of the nickel layer. So, the parts need to go through cleaning processes such as degreasing, pickling, and polishing. Degreasing removes oil stains, which can be done using chemical solvents or alkaline solutions. Pickling helps eliminate rust and oxide layers, usually with acidic solutions. Polishing further smooths the surface, ensuring a uniform and smooth base for the nickel plating.

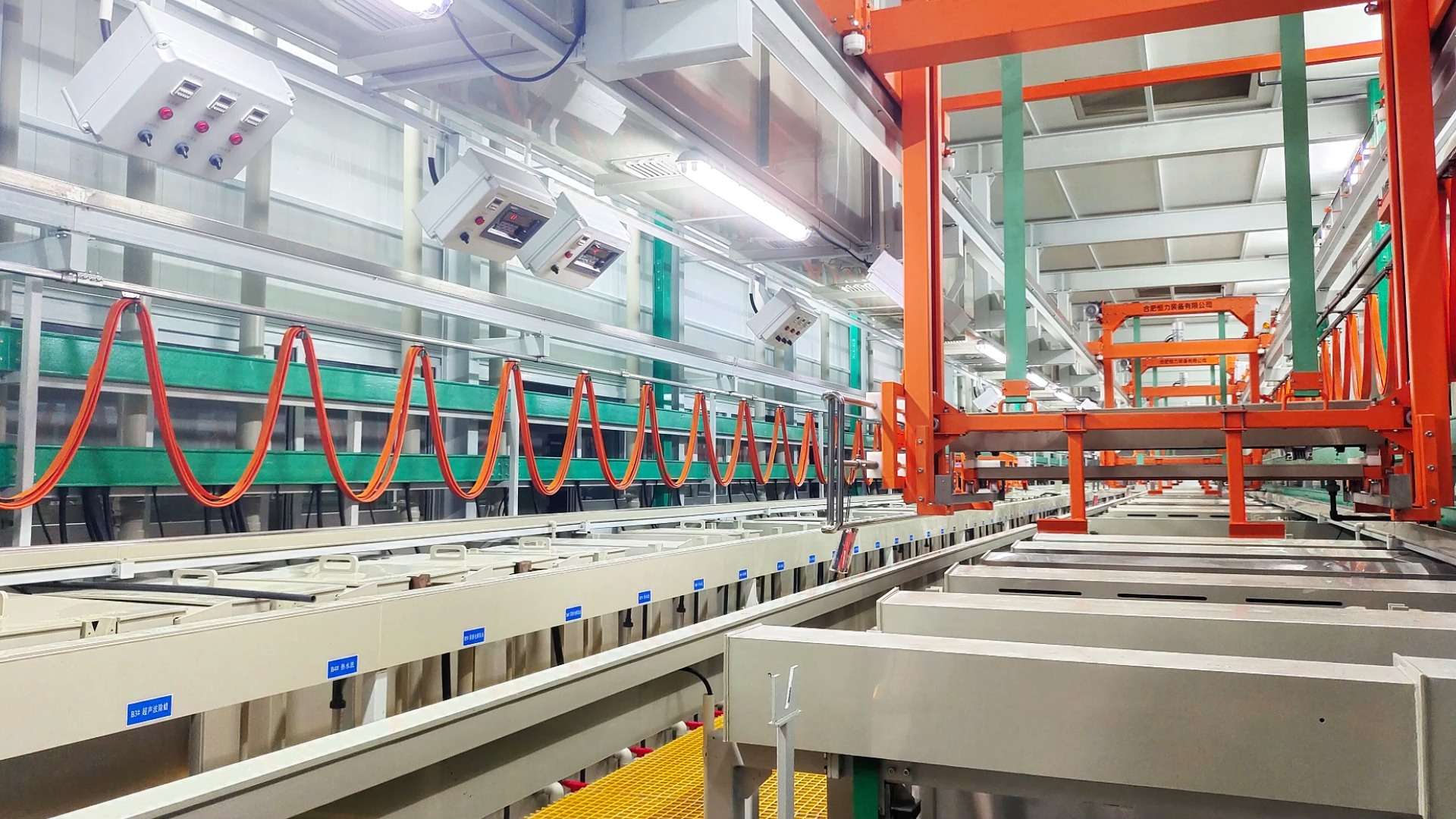

Next is the electroplating process itself. The prepared parts are immersed in an electrolyte solution containing nickel ions. The parts act as the cathode, and a nickel anode is also placed in the solution. When an electric current is applied, nickel ions in the solution are attracted to the cathode (the workpiece) and gain electrons, depositing onto the surface to form a nickel layer. The thickness of the nickel layer can be controlled by adjusting the current density and the plating time. During this process, various parameters such as temperature, pH value, and concentration of the electrolyte need to be strictly controlled to ensure the quality of the plating, such as uniformity, adhesion, and corrosion resistance.
After electroplating, post-treatment is necessary. This may include rinsing to remove any residual electrolyte on the surface, drying to prevent water spots, and sometimes passivation. Passivation forms a thin oxide film on the nickel surface, further improving its corrosion resistance.
CNC machined parts are known for their high precision and complex shapes, and nickel plating plays an important role in enhancing their performance and extending their service life.
One of the main applications is improving corrosion resistance. Many CNC machined parts are used in harsh environments, such as in the automotive, aerospace, and marine industries, where they are exposed to moisture, chemicals, and salt spray. The nickel layer acts as a barrier, preventing the underlying metal from coming into contact with corrosive substances, thus significantly reducing the risk of rust and corrosion.
Nickel plating also enhances wear resistance. CNC machined parts often undergo friction and wear during operation, such as gears, bearings, and shafts. The hard nickel layer can withstand these forces, reducing the wear rate of the parts and extending their service life. Additionally, the smooth surface of the nickel plating reduces friction between moving parts, improving the efficiency and performance of the machinery.
In terms of aesthetics, nickel plating provides a bright, uniform, and attractive surface finish. This is particularly important for parts that are visible, such as consumer electronics, automotive trim, and decorative components. The nickel layer can be further treated, such as with chrome plating, to achieve different aesthetic effects.
Furthermore, nickel plating can improve solderability of some CNC machined parts. For parts that need to be soldered, a nickel layer provides a suitable surface that allows for better adhesion of the solder, ensuring reliable electrical and mechanical connections.
In conclusion, the nickel plating process is a versatile and effective surface treatment method. Its application in CNC machined parts not only improves the performance and durability of the parts but also enhances their appearance and functionality, making it an indispensable technology in modern manufacturing. With the continuous development of CNC machining technology, the demand for high-quality nickel-plated parts is expected to continue to grow, driving further advancements in nickel plating technology.
