In the journey of innovative product development,bridging the gap from a brilliant prototype to stable and reliable small-batch production often presents a significant challenge.3D printing offers unparalleled rapid prototyping and iteration capabilities.However,when it comes to small-batch production needs of tens or hundreds of units,relying solely on 3D printing often encounters bottlenecks in efficiency,fluctuations in consistency,and rising costs.The core issue lies in how to combine the flexibility of the prototyping stage with the standardization,efficiency,and cost control required for mass production.The answer may well lie in a mature technology—precision jigs and fixtures manufactured through CNC machining.
Pain Points of 3D Printing:When"Freedom"Meets"Volume"
•Efficiency Bottleneck:While individual printing is fast,the cumulative printing time increases linearly with the quantity.The limited print bed space and the need for manual intervention in loading and unloading make it difficult to achieve truly continuous production.
•Consistency Challenges:Variations in material properties between batches,printing orientation,temperature fluctuations,and differences in post-processing(such as support removal and grinding)can all lead to minor deviations in the final part's dimensions,surface quality,and even mechanical properties.For components that require precision assembly or functional testing,such fluctuations can be catastrophic.
•Post-Processing Bottleneck:Processes like support removal,grinding,polishing,and coloring are highly labor-intensive and skill-dependent.Not only are they time-consuming and effort-intensive,but differences in skill levels can directly affect the quality and consistency of the final product.This is one of the main drivers of cost overruns in small-batch production.
CNC Jigs and Fixtures:The Physical Bridge to Standardization
The core advantages of CNC machining lie in its exceptional precision,repeatability,and ability to process high-strength materials.Applying this technology to the manufacture of dedicated jigs and fixtures can precisely address the shortcomings of 3D printing in small-batch production:
Precision Positioning and Clamping:
• Positioning pins,V-blocks,and contour clamps machined from metal precision parts provide millimeter or even micrometer-level repeat positioning accuracy for 3D-printed parts of various shapes.Regardless of the orientation during printing,the parts can be precisely constrained to the correct position once placed in the fixture.
• Case example:A 3D-printed sensor housing that requires precision drilling.A drilling fixture made through CNC machining,integrated with a carbide drill bushing,ensures consistent hole positioning for each housing,eliminating errors from manual marking and positioning,and significantly improving assembly yield.
Integrated Post-Processing Platform:
•The fixture is not just a locator but also a"mother machine"for efficient post-processing.
•Integrated support removal and trimming:The fixture can be designed with guide slots to direct pneumatic or manual tools along a preset path to efficiently and safely remove support structures without damaging the main body.For critical areas,preset contour milling paths can be used for fine trimming.
•Integrated inspection:Precision gauges(such as plug gauges and snap gauges)or positioning datum surfaces can be integrated into the fixture itself or accompanying inspection tools,allowing operators to quickly perform in-process inspections of key dimensions(Go/No-Go)while the part is still clamped,achieving instant quality control.
•Spray painting/coating mask:For parts that require selective spraying,high-precision masking plates machined through CNC can be precisely matched with the fixture to cover areas that do not need treatment,improving efficiency and ensuring clear boundaries.
Automation and Process Optimization:
•Standardized interfaces:When designing CNC fixtures,standard interfaces can be preset for worktables(such as milling machine tables,robot quick-change plates)and pneumatic/vacuum systems(such as locating holes,pneumatic quick connectors),facilitating integration into semi-automatic or fully automatic workstations.
•Process decomposition and parallelization:A well-designed fixture system can break down the post-processing workflow,which originally relied on a single skilled technician(e.g.,support removal→grinding→drilling→inspection),into multiple simple steps ensured by the fixture's precision.These steps can be executed by ordinary operators,significantly improving overall efficiency and reducing dependence on individual skills.
CNC Fixture Manufacturing:Ensuring Precision and Rigidity
The quality of the fixture itself is the prerequisite for its effectiveness:
• Materials and Processes:The fixture base is typically made of high-strength aluminum alloy(lightweight,easy to machine)or steel(high rigidity,wear-resistant).Machining metal precision parts ensures extremely high dimensional accuracy(often reaching±0.01 mm or higher)and surface hardness for positioning elements(pins,bushings,clamps).

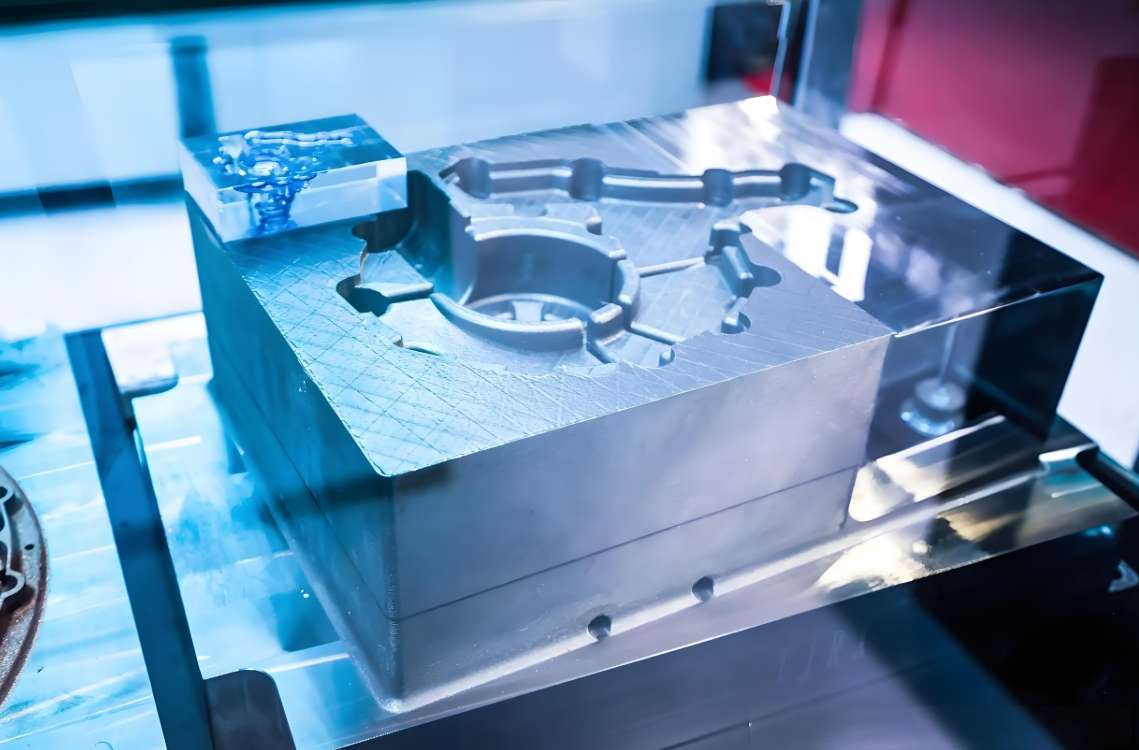

• Complex Structure Capability:CNC multi-axis machining centers can efficiently and accurately machine fixture bodies with complex cavities,curved positioning surfaces,or internal cooling/air passages,meeting the positioning needs of complex 3D-printed parts.
• Large-Scale Base Support:For assembly/inspection stations that need to stably support multiple parts or large printed pieces,large metal part machining(such as thick base plates,gantry frames)provides the necessary rigidity and vibration damping capabilities,ensuring the stability of the entire operating platform.These precision parts form the backbone of an efficient process.
• Durability and Lifespan:Compared to plastic fixtures made through 3D printing,CNC metal fixtures have excellent wear resistance,deformation resistance,and long lifespan,making them particularly suitable for repeated clamping and harsh operating environments.The long-term amortized cost is lower.
Success Case:Standardization Journey of a Drone Gimbal
A startup designed a high-performance drone gimbal bracket,with the core structural components made from high-performance nylon using SLS 3D printing.The prototype was perfect,but the first batch of 50 orders exposed problems:
• Manual post-processing(support removal,key hole trimming)took too long,averaging 1.5 hours per piece.
• Manual drilling position deviations led to uneven bearing installation and inconsistent rotation resistance,with some products requiring rework or even scrapping.
Solution:Introduction of CNC Jig and Fixture System
• Drilling and Trimming Fixture:A carbide drill bushing guides the precision drill bit to ensure the positional accuracy of the bearing installation holes for each bracket;integrated guide slots direct the milling cutter to quickly trim key surfaces.
• Assembly Positioning Fixture:Precisely positions the bracket body,motor base,and bearings to eliminate manual alignment errors and ensure consistent smooth rotation after assembly.
• In-Process Inspection Station:Specialized gauges quickly verify key spacing and coaxiality.
Results:
• The time for post-processing and assembly per piece was reduced to 0.4 hours.
• The first-pass assembly yield increased from 70%to 98%.
• The total cost for the 50 orders was reduced by 35%,and the quality was stable and reliable,laying a solid foundation for subsequent larger batch orders(which may transition to injection molding or die casting).
Conclusion:Precision Manufacturing Empowers Agile Production
Introducing precision jigs and fixtures manufactured through CNC machining into the small-batch production process of 3D printing is not a simple technological overlay but a systematic efficiency strategy.It physically connects"the creativity of the prototyping stage"with"the quality and efficiency requirements of mass production":
•Standardization Integration:Fixtures act as physical standard operating procedures(SOPs),mandatorily defining the position,orientation,and steps for part processing,minimizing human variability to the greatest extent.
•Bottleneck Breakthrough:Significantly alleviates the key bottleneck of post-processing,improving overall efficiency and reducing labor costs.
•Quality Assurance:Provides a solid physical guarantee for consistency,ensuring that each delivered part is as precise and reliable as the prototype.
•Cost Control:Although there is an initial investment in fixtures,the efficiency improvements,yield increases,labor savings,and ability to take on higher-value orders make them highly cost-effective in small-batch production scenarios,especially for companies that need to repeatedly produce small batches of similar products.
In the journey from prototype to small-batch production,CNC jigs and fixtures are not an expensive luxury but a key driver for reducing overall costs,improving product reliability,and enhancing market competitiveness.They represent the intelligent integration of precision mechanical manufacturing(machining metal precision parts,large metal part machining)and additive manufacturing(3D printing),providing innovators with a reliable path from"being able to produce"to"being able to produce stably,efficiently,and economically."When creativity meets standardization,the bridge to mass production is thus established.
