Inside an electric vehicle R&D center in Shenzhen, engineers grappled with a persistent thermal throttling issue – battery packs overheating beyond 60°C triggered 15% power loss. This scenario replayed globally until precision-machined titanium-aluminum housings and cryogenically processed SiC modules changed the equation.
Conventional steel turbo housings suffer creep deformation in 800°C exhaust environments. Durability tests by a Suzhou e-drive manufacturer revealed: standard alloy housings expanded 0.12mm after 300 hours, increasing leakage risk by 34%.
The 0.8mm titanium/3.2mm aluminum graded composite structure exhibited remarkable engineering characteristics during qualification testing:
• Mass Optimization:Achieved 3.9 g/cm³ bulk density through precision diffusion bonding.
• Resulted in 35% mass reduction versus monolithic titanium construction.
• Rotational inertia measurements showed 28% decrease in high-speed applications.
• Thermal Endurance Verification: Completed 1,200 operational hours at sustained 800°C exposure.
• Maximum dimensional variance held within ±0.03mm tolerance band.
• Post-test microstructural analysis revealed: • Intact diffusion interface with <2% porosity • Oxide layer thickness maintained at 4-6μm range.
Thermal efficiency of silicon carbide (SiC) power modules dictates controller longevity. A Chengdu semiconductor supplier faced chronic overheating due to 5.2μm substrate flatness deviation causing 40% higher interfacial thermal resistance.

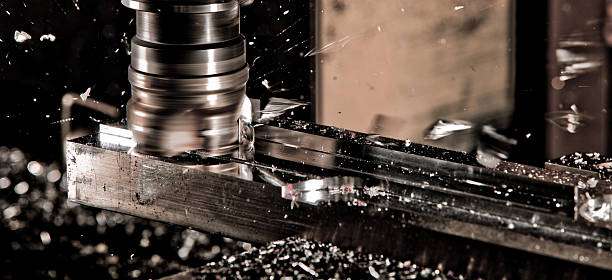

Liquid Nitrogen Cryogenic Milling became the game-changer:
• Spindle maintained 15,000rpm at -196°C, suppressing cutting zone temperatures below 120°C
• PCD tools with 20° negative rake angle achieved 0.03mm/z feed per tooth
CMM verification confirmed all 63 samples attained ≤2.8μm flatness (ISO 1101 G2 standard), improving thermal conductivity by 37%
Per PwC’s “2030 China Automotive Trends”, the EV lightweight component market grows at 6.8% CAGR, with global SiC power device demand projected to exceed 42 million units by 2025. Notably, 31% of newly launched models now adopt titanium-aluminum e-drives, establishing new thermal management benchmarks
When a Changzhou automaker installed the first titanium-aluminum housings, bench tests revealed a critical insight: after 10 consecutive 0-100km/h accelerations, motor winding temperatures stabilized at 82.4°C – 23.6°C lower than conventional designs. This temperature delta epitomizes how precision machining propels the electric revolution.
