In a machine shop on the outskirts of Stuttgart,engineer Max is fine-tuning a newly purchased five-axis machining center.As he watches the spindle trace smooth,complex curved trajectories through the space with a titanium alloy aerospace fitting,he can't help but recall the scene three years ago when he was machining similar parts with a 3+2 axis system—four re-clamps were needed then,with a cumulative error reaching 0.03 millimeters.Today,German SMEs stand at a crossroads of technological upgrading,and this game of precision versus cost is profoundly influencing the competitiveness of metal precision parts.
In-Depth Analysis of the Technical Essence

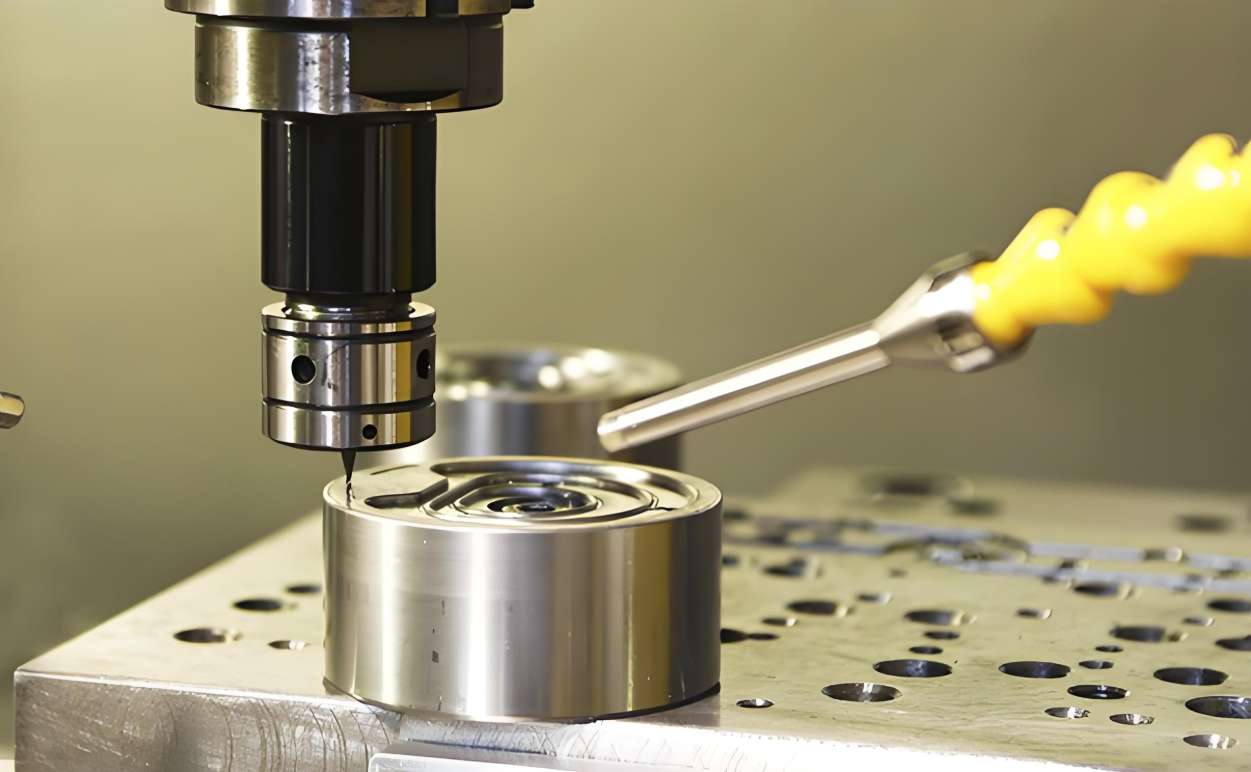

The core of true five-axis machining lies in the real-time dynamic linkage of five motion axes.When machining complex curved surfaces like turbine blades,the spindle tool can always maintain the optimal cutting angle,completing all processes in a single setup.This technology is particularly suitable for precision parts such as aerospace engine combustion chambers,where it can stably control the contour accuracy within±8 micrometers(in line with the German VDI 3441 standard).Munich MedTech,for example,has leveraged this technology to achieve a surface roughness of Ra 0.2 micrometers on artificial joint hemispheres,meeting the stringent requirements for human implants.
In contrast,3+2 axis machining is more like an"intelligent three-axis system."Its rotary axes first fix the workpiece at a specific angle,followed by three-axis turning and milling operations.Lehmann Machinery in the Black Forest region uses this solution to machine microscope bases,completing six-sided machining through three angular adjustments.Although the cumulative error rises to 0.025 millimeters,the equipment investment is only one-third of that of a five-axis system.This directional machining mode performs exceptionally well in the automotive mold field:the Wolfsburg Mold Factory completes deep cavity cutting of aluminum alloy die-casting molds at a fixed angle,extending the mold life to over 150,000 cycles.
Multi-Dimensional Cost-Benefit Analysis
There is a significant difference in equipment investment.A five-axis machining center from a German domestic brand typically costs between 800,000 and 1.5 million euros,while a 3+2 axis solution,by retrofitting existing CNC machines,can be controlled within 150,000 to 400,000 euros.However,test data from the Fraunhofer Institute reveals a deeper logic:when machining 50 titanium alloy engine mounts,the five-axis system saves 37%of working hours by reducing the number of setups,but the equipment depreciation cost is 3.2 times higher.
This contradiction forms a subtle balance in batch production.For complex curved parts with a monthly production volume below 180 pieces(such as impellers),five-axis machining has a lower overall cost—its continuous cutting characteristics reduce the per-piece working hours by 45%.However,for medium-batch standard structural parts(such as valve casings),the 3+2 axis solution is more economical.A Jena-based optical company used it to reduce the metal part machining cost by 28%.
The Pragmatic Choice of German Practice
The upgrade path of Bremen Aerospace GmbH is quite enlightening:they initially retrofitted a dual-axis rotary table to their existing three-axis CNC(an investment of 78,000 euros)to take on orders for medical device casings and accumulate funds.Three years later,they purchased a five-axis machine with the profits and successfully entered the market for aerospace titanium alloy parts.This step-by-step development confirms the pragmatic philosophy of German engineers—technology choices should mesh like precision gears,matching the current"gear ratio"needs of the enterprise.
Even when choosing the 3+2 axis solution,forward-looking planning is still essential:
• Adopt modular fixtures that comply with the ISO 10791 standard to ensure future compatibility with five-axis systems.
• Simulate five-axis toolpaths in CAM programming(such as enabling TCP(Tool Center Point)control).
• Reserve space for equipment interfaces to allow for the possibility of upgrading to rotary axes in the future.
The evolution of turning and milling technology is endless.The relationship between five-axis and 3+2 axis is not one of replacement but of complementarity,as pointed out in a report by the German Mechanical Engineering Industry Association(VDMA):"In the SME ecosystem of Baden-Württemberg,the coexistence ratio of high-end five-axis and cost-effective 3+2 axis systems has reached 1:3,together forming the resilient foundation of German precision part manufacturing."The real wisdom lies in matching technology to manufacturing needs,rather than being held hostage by technology—and this may well be the underlying code for the enduring success of"Made in Germany."
