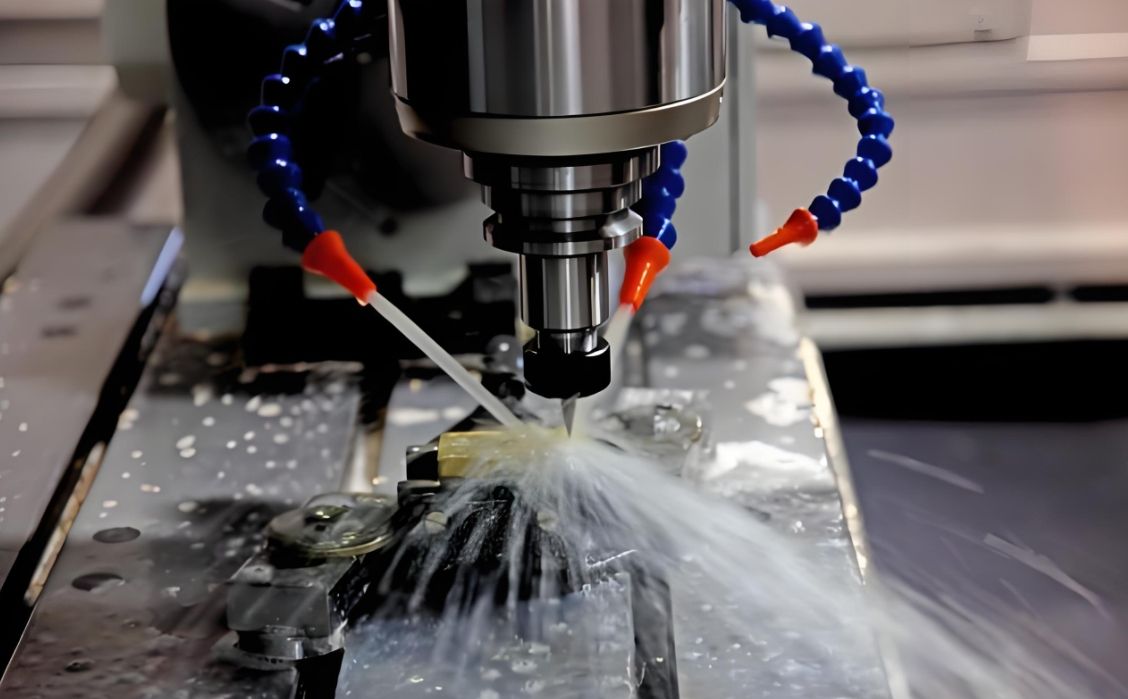

In the realm of precision manufacturing,there is a system that often flies under the radar but is quietly changing the game.Centralized Pumping,akin to the heart of an industrial circulatory system,continuously supplies the lifeblood—coolant—to CNC machines.When cutting tools slice through metal at tens of thousands of revolutions per minute,it is this hidden system,buried beneath the workshop floor,that determines the quality of precision parts and the efficiency of workshop operations.
The Evolution of Coolant:From Standalone to Centralized Revolution
A decade ago,stepping into a CNC workshop,you would see individual coolant tanks standing beside each machine,with workers manually adding concentrated coolant using measuring cylinders.This fragmented management led to fluctuations in cooling parameters during the machining of precision metal parts:the surface finish of aluminum alloy casings machined in the morning was stable,but the same batch of parts in the afternoon would exhibit micro-burr issues.The root cause lay in the inability of decentralized coolant supply to ensure consistent concentration,temperature,and purity of the coolant.

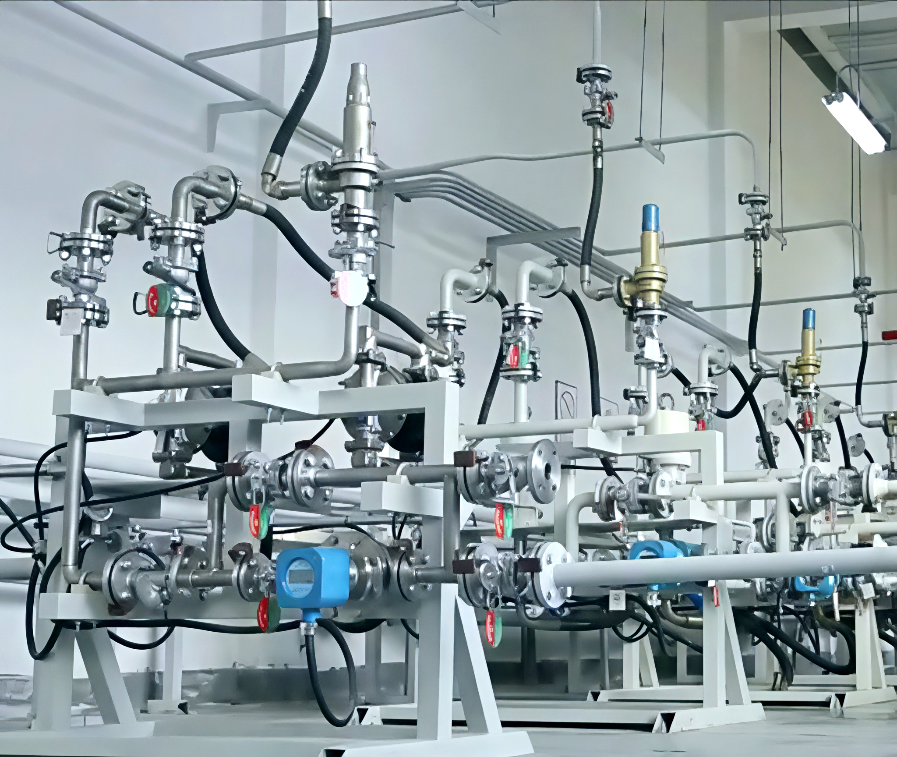

The advent of Centralized Pumping changed the game.Through an underground pipeline network,a central reservoir delivers triple-filtered coolant to all CNC equipment.Real-world data from an automotive parts factory in Germany shows that centralized coolant supply reduced the surface roughness variation in stainless steel valve body machining by 60%and increased tool life by 45%.This system,like a precise circulatory system,silently safeguards the cutting stability of every machine.
Cooling Challenges for Large Parts
When the machining objects become large metal parts such as wind turbine gearboxes or ship bearing housings,the challenges are even more daunting.These workpieces often require continuous machining for tens of hours,and traditional cooling methods face three major dilemmas:
• Heat Dissipation Bottleneck:The core area of the part can reach temperatures of up to 120°C,with localized overheating causing dimensional deformation.
• Waste Liquid Flood:A single part can generate several tons of waste liquid containing metal chips.
• Environmental Risks:The risk of exceeding residual coolant standards increases with decentralized treatment.
The innovative solutions of Centralized Pumping are truly remarkable:
• Layered Spray Technology:Targeting different areas of the part,intelligent valves control variable pressure cooling from 4 to 20 bar,creating a penetrating cooling flow at the root of titanium alloy impellers.
• Centrifugal Paper Belt Filtration:The central system employs a three-stage filtration process to separate and compress 50-micron metal chips into cake form,with a waste liquid recovery rate exceeding 95%.
• Dynamic pH Balance:A sensor network continuously adjusts the acidity or alkalinity of the coolant to prevent surface corrosion of large castings.
The Hidden Guardian of Precision Manufacturing
For the machining of precision metal parts,the value of Centralized Pumping extends beyond cooling.When machining medical-grade titanium alloy or optical aluminum alloy,the coolant also takes on a more delicate mission:
• Micron-Level Cleaning:After passing through a 0.5-micron precision filter,the coolant can remove sub-micron particles that cause precision bearings to seize.
• Thermal Deformation Compensation:A constant-temperature system maintains an operating condition of 23°C±0.5°C,preventing an 800mm diameter aero flange from exceeding a 3-micron dimensional error due to temperature differences.
• Process Database:Flow sensors record the coolant consumption of each machine,providing a data foundation for process optimization.
The experience of a Swiss precision instrument factory confirms this:after implementing Centralized Pumping,the batch pass rate of miniature gearboxes jumped from 92%to 99.3%,and rework costs were reduced by 70%.
Transoceanic Coordination
When the last turbine casing is finished,the challenge of transporting metal parts has only just begun.Severe temperature and humidity fluctuations during maritime transport once caused corrosive liquid films to form on the surface of precision parts.Now,the concept of Centralized Pumping extends to the logistics stage:
• Drying Protection:Parts are treated with a rust-preventive film from the centralized pumping system before leaving the warehouse.
• Smart Packaging:Wooden crates equipped with temperature and humidity recorders connect data directly to the central monitoring platform.
• Global Response:When humidity in the shipping container exceeds the standard,the system automatically triggers the release of desiccants.
This end-to-end precision management allows gas turbine rotors shipped to North America to be directly assembled upon arrival,eliminating the need for re-cleaning.As a global project director remarked,"The essence of precision manufacturing is to create visible value from invisible details."
Fluid Intelligence
The Centralized Pumping system is moving from behind the scenes to the forefront of intelligence.The latest iteration of the system has self-learning capabilities:it analyzes machining data from different material parts to automatically optimize coolant formulas,dynamically adjusts spray pressure based on tool wear curves,and even predicts filter life to trigger purchase orders.
As the wave of Industry 4.0 sweeps through the manufacturing sector,this"blue bloodstream"flowing beneath the workshop floor has become the core neuron of the modern CNC system.It silently connects the macro scale of large metal part machining with the micro precision of precision metal machining,writing an evolutionary narrative of efficient manufacturing in the eternal dance between metal and coolant.
The competitiveness of future factories may well lie in these seemingly ordinary yet critically important flows.
