The anodizing process involves several sequential steps, each designed to prepare the metal surface, create the anodic oxide layer, and ensure its stability. Here is a breakdown of the key stages:
Before anodizing can begin, the CNC machined part must undergo thorough pre-treatment to remove any contaminants that could interfere with the process. This typically includes:
• Cleaning: The part is immersed in a degreasing solution to eliminate oils, greases, and other organic residues. This step is vital as even small amounts of contamination can prevent the formation of a uniform oxide layer.
• Etching: A chemical etch (often using sulfuric acid or phosphoric acid) is applied to remove the natural oxide layer that forms on aluminum surfaces and to create a micro-rough texture. This texture helps the subsequent oxide layer adhere more effectively.
• Desmutting: After etching, a desmutting solution (usually nitric acid) is used to remove any smut or residual impurities left on the surface, ensuring a clean and uniform base for anodizing.
The pre-treated part is then immersed in an electrolytic bath, typically containing sulfuric acid, which acts as the electrolyte. The part is connected to the positive terminal of a direct current (DC) power supply (making it the anode), while a cathode (usually made of lead or stainless steel) is also placed in the bath. When an electric current is applied, several reactions occur:
• Oxygen ions are released at the anode (the part's surface) and react with the aluminum to form aluminum oxide (Al₂O₃).
• The thickness of the oxide layer can be controlled by adjusting the current density, voltage, and duration of the process. Typical thicknesses range from 5 to 25 microns for decorative applications and up to 100 microns for industrial uses requiring enhanced wear resistance.
Once the desired oxide layer thickness is achieved, the part undergoes a sealing process to close the pores of the oxide layer. This step is critical as the porous structure of the freshly anodized layer can absorb moisture and contaminants, reducing its effectiveness. Common sealing methods include:
• Hot Water Sealing: Immersing the part in boiling or near-boiling water causes the aluminum oxide to hydrate, expanding and plugging the pores.
• Nickel Acetate Sealing: Using a nickel acetate solution at elevated temperatures to form a nickel compound within the pores, providing excellent corrosion resistance.
Anodized parts can be colored for both decorative and functional purposes. Coloring is typically done after anodizing but before sealing, as the porous oxide layer can absorb dyes. Methods include:
• Dyeing: Organic or inorganic dyes are absorbed into the pores, with the color remaining stable after sealing.
• Electrolytic Coloring: A secondary electrolytic process where metal salts (such as nickel or cobalt) are deposited into the pores, creating a range of colors through light interference.
Applying anodizing to CNC machined parts offers a host of advantages that make it a preferred surface treatment in various industries, including aerospace, automotive, electronics, and consumer goods.
The aluminum oxide layer formed during anodizing is inert and highly resistant to corrosion. This is especially beneficial for CNC machined parts that are exposed to harsh environments, such as moisture, chemicals, or saltwater. Unlike a painted or plated finish, the oxide layer is an integral part of the metal, so it won’t chip or peel easily, providing long-term protection.
The anodic oxide layer is significantly harder than the base aluminum metal. This increased hardness enhances the wear resistance of CNC machined parts, making them more durable in applications involving friction, abrasion, or repeated contact. For example, CNC machined components like gears, brackets, and sliding parts benefit from reduced wear and longer service life.

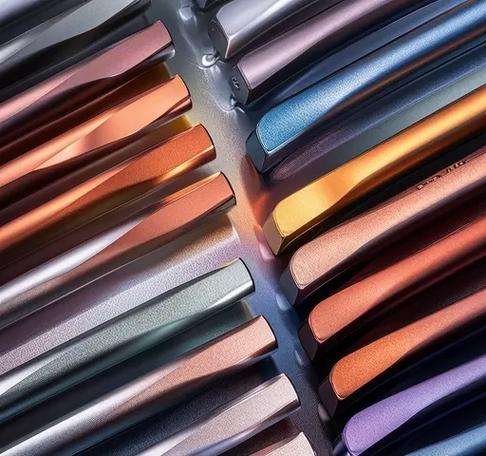

Anodizing allows for a wide range of color options, from natural silver to vibrant hues, enabling manufacturers to match specific design requirements or brand aesthetics. The color is integrated into the oxide layer, making it more resistant to fading, chipping, or peeling compared to painted surfaces. Additionally, the process can produce a matte, satin, or glossy finish, adding to the visual versatility of CNC machined parts.
The porous nature of the anodized layer (before sealing) provides an excellent surface for bonding with adhesives, paints, or other coatings. This is advantageous for CNC machined parts that require additional layers for specific functionalities, such as insulation or further corrosion protection. Even after sealing, the surface retains sufficient texture to improve adhesion compared to untreated aluminum.
The aluminum oxide layer is an electrical insulator, making anodized CNC machined parts suitable for applications where electrical isolation is required. This is particularly useful in the electronics industry, where components like heat sinks, connectors, and enclosures need to prevent electrical conduction while maintaining thermal conductivity (as aluminum itself is a good heat conductor).
Anodizing is a relatively cost-effective surface treatment compared to alternatives like plating, especially for large or complex CNC machined parts. It is also an environmentally friendly process, as it uses non-toxic chemicals (in most cases) and produces minimal waste. The oxide layer is also recyclable, aligning with sustainable manufacturing practices.
Anodizing is a versatile and effective surface treatment that enhances the performance, durability, and aesthetic appeal of CNC machined parts. By following a precise process of pre-treatment, anodizing, sealing, and optional coloring, manufacturers can create parts with superior corrosion resistance, wear resistance, and electrical insulation. Whether for industrial machinery, consumer electronics, or aerospace components, anodizing provides a cost-effective and sustainable solution that meets the demanding requirements of modern manufacturing.
